75g Snack Chip Packaging Machine 10 In A Row
Combine 10 head vertical packaging machine snack packing line


Application
It is suitable for weighing and packing all kind of snack such us nut,bean,seed etc .

Seed

Nut

Bean

Snack

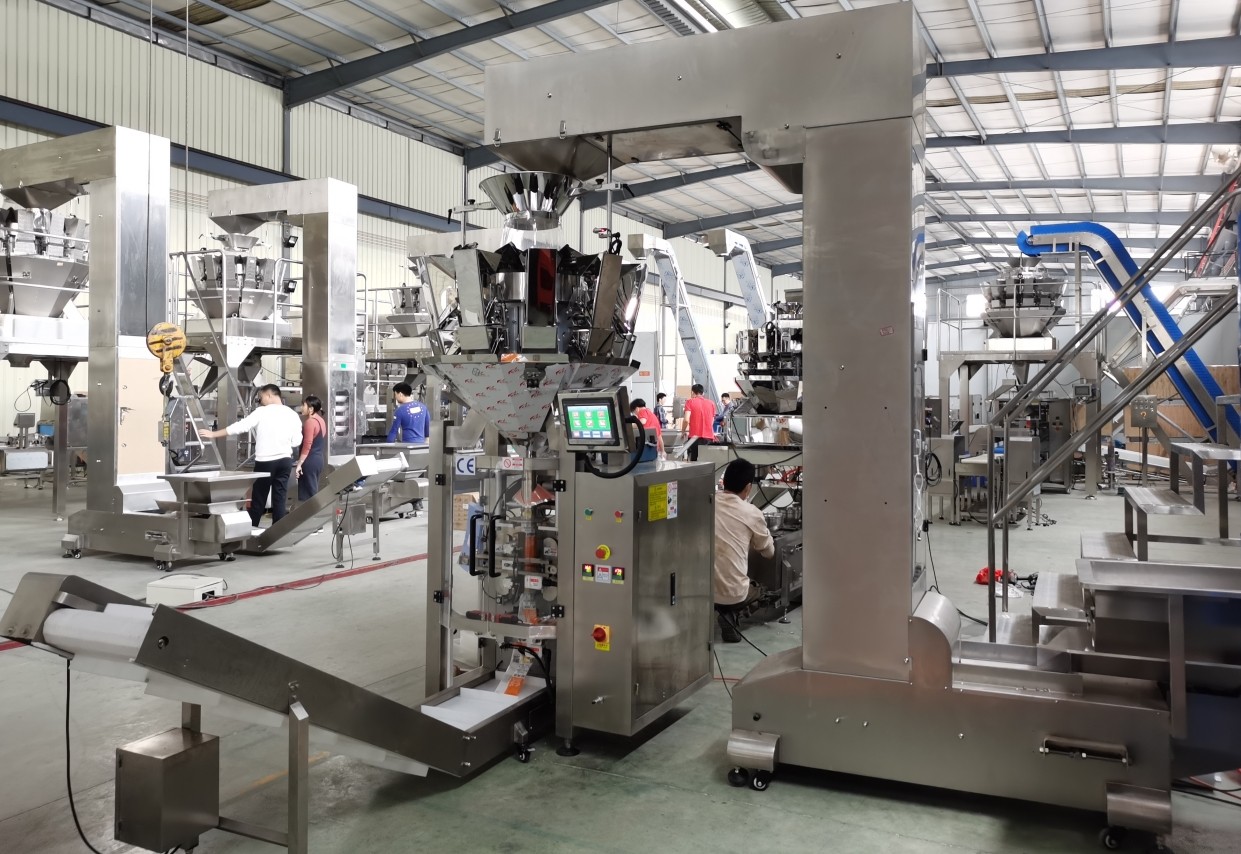

Machines List
① Vibrating feeder
② Z type Bucket elevator
③ Multihead Weigher
④ Working Platform
⑤ Vertical Form Fill Seal Machine
⑥ Output conveyor
⑦ Metal Detector (OPTION)
⑧ Check weigher (OPTION)
⑨ Collect Table (OPTION)
⑩ Nitrogen Generator (OPTION)
Working Principle
① Filling products into hopper of bucket conveyor on floor;
② Products will be lifted on the top of multihead weigher for feeding;
③ Multihead weigher will automatic weigh according to preset weight;
④ Weighed products will be dropped to VFFS machine for bagging and sealing;
⑤ Finished package will be outputted to metal detector, machine will alarm if with metal, if not will go to check weigher
⑥ Product will be passed through check weigher, if over or less weight, it will be rejected, if not, pass to rotary table
⑦ Products will get to rotary table, and worker put them into paper box
Features
① Fully-automatically procedures from material feeding, weighing, filling and bag-making, date-printing to finished products output;
② High weighing precision and efficiency,with speed as fast as 50 bags per minute;
③ Multi-languages touch screen for various clients, English, French, Spanish, etc;
④ Combine design,small ground occupation,saving more space and cost;
⑤ Double film pulling belt with servo system;
⑥ Designed and Manufactured in accordance with the CE Safety regulations;
⑦ Only control touch screen to adjust bag deviation. Simple operation.
Specifications
Model
|
M10P420
|
||
Speed
|
10-50 bags/min
|
||
Accuracy
|
0.2-1.5g
|
||
Weight range
|
10-800g
|
||
Bag size | 50-280mm(L),80-200mm(W) | ||

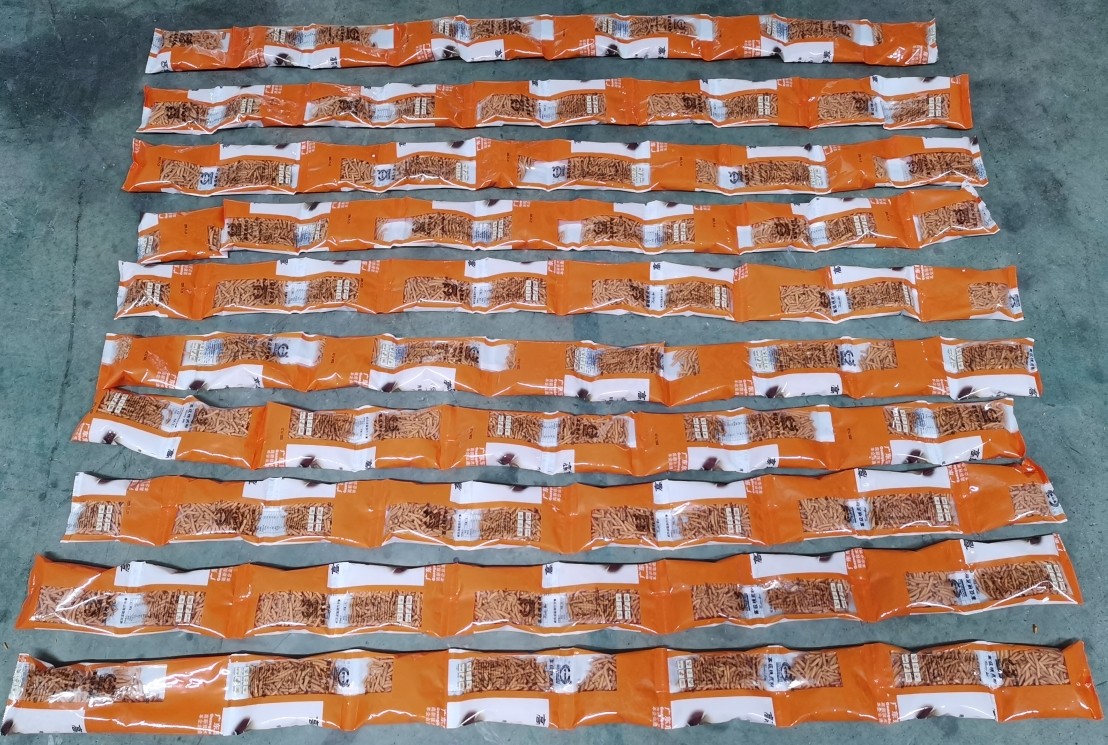

Bag type | Pillow bag,pillow bag with gusset | ||
Bag material | Laminated film,Mono PE film | ||
Film thickness | 0.04-0.09mm | ||
Weight hopper volume | 1.6L | ||
Control panel | 7" touch screen | ||
Air comsumption | 0.8 Mpa,0.4 m³/min | ||
Power supply | 220V 50/60 HZ,15A,4000W |

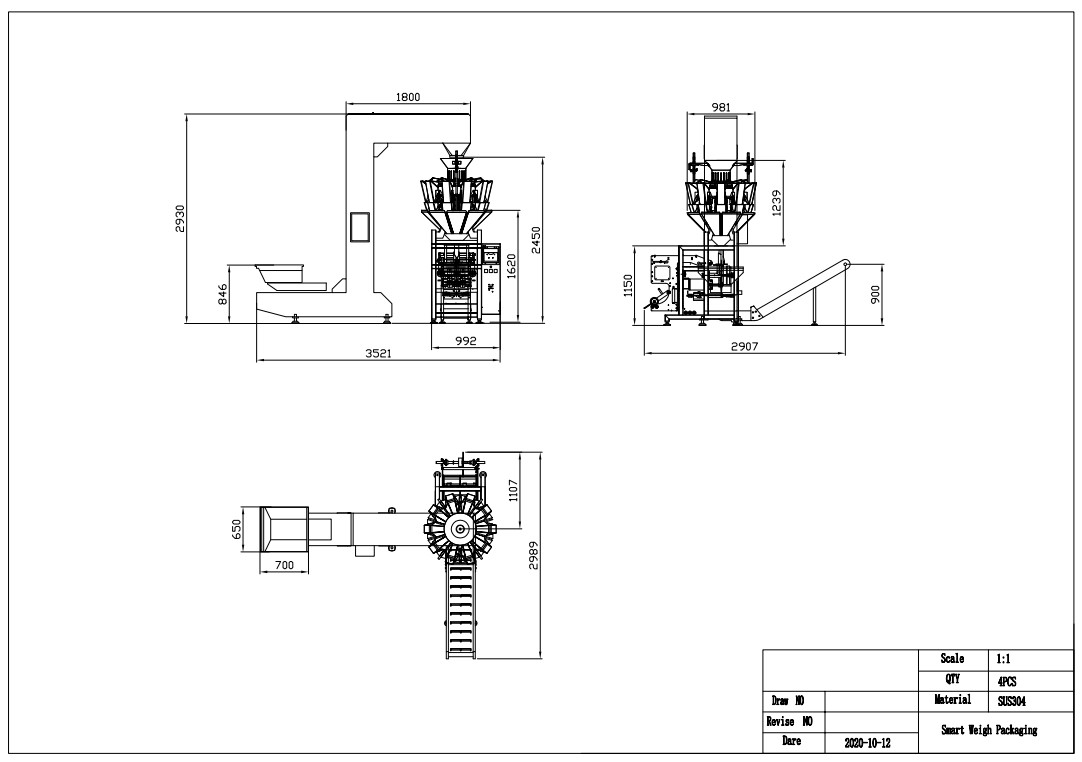

System Drawing
