10-50kg Case Bulk Box Check Weigher Automactic Weigh Checker 20kg Checkweigher Machine
10-50kg Case Bulk Box Check Weigher Automactic Weigh Checker 20kg Checkweigher Machine
| Categories | Inspection Machine |
|---|---|
| Album | View larger image |
| Brand | SMART WEIGH |
| Model | SW-C500 |
| Construction | Stainless steel 304 |
| Stainless steel 316 | brushed finish |
| FOB port | Zhongshan port, China |
| Terms of Payment | L/C, T/T |
| Download DOC |  |
| Update Time | 2021-04-20 |
Detail Information
Specification
Model |
SW-C500 |
Control system | Mother board |
Weighing range |
5-50 kg |
Max. speed |
10-15 packs /min |
Product size | 10＜L＜700 mm; 10＜W＜500 mm |
Accuracy |
+1% |
Mini scale | 1 grams |
Weighing belt | 1000L*500W mm |
Voltage | 220V/50 Hz or 60 Hz; Single phase |
Reject system | Reject arm, air blow, pneumatic pusher, drop dow |
Application
SW-C500 is a kind of box check weigher or bulk check weigher ,mainly for big size and big weight products weight checking .
Box / Case
Bottle
Doypack
Tray
Features
◆ WIENVIEW 7" touch screen and Mother Board control system, easy for operation and get more stable performance;
◇ Adopting a well-known checkweigher load cell HBM, SW-C500 checkweigher accuracy is ±1%;
◆ Production records can be checked at anytime or downloaded to PC;
◇ All-digital signal processing and transmission;
◆ 304 stainless steel frame ensures the stable performance of machine and weighing accuracy;
◇ Roller pusher of checkweigher rejection design for big weight products;
◆ Dismantling belt without tools, convenient for cleaning;
◇ Combined machine, space saving;
◆ If unqualified products pass to next equipment, machine will stop immediately to guarantee the quality.
Pictures for reference

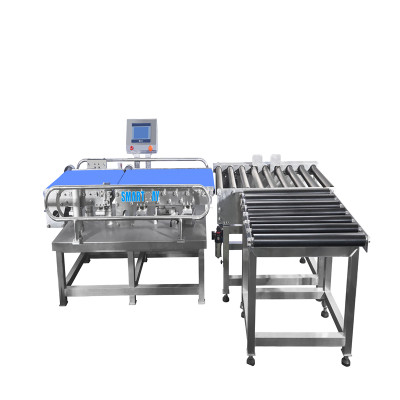

500 Check Weigher 1

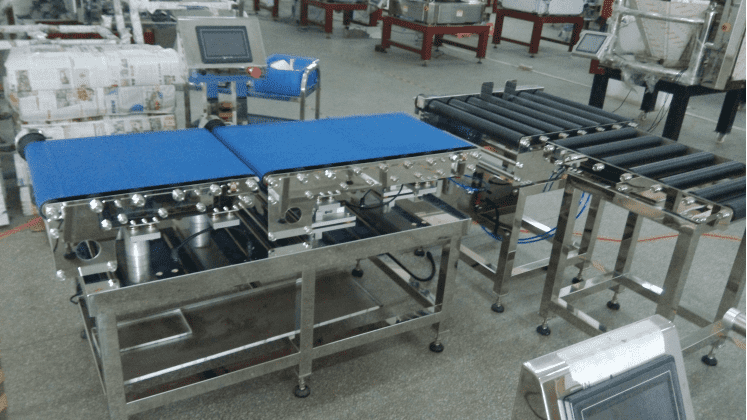

500 Check Weigher 2
500 Check Weigher 3
