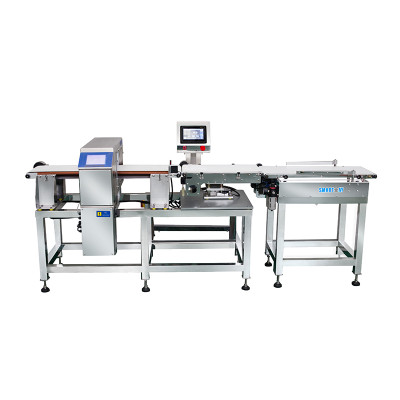

Checkweigher metal detector combination machine weigh checker machine
Checkweigher metal detector combination machine weigh checker machine
| Categories | Inspection Machine |
|---|---|
| Album | View larger image |
| Brand | SMART WEIGH |
| Model | SW-CD300 |
| Construction | Stainless steel 304 |
| Brushed finish | Stainless steel 316 |
| FOB port | Zhongshan port, China |
| Terms of Payment | L/C, T/T |
| Download DOC |  |
| Update Time | 2021-02-26 |
Detail Information
Specification
Model |
SW-CD320 |
Control system | Mother board |
Weighing range |
10-3200 grams |
Max. speed |
100 bags/min |
Product size | 10＜L＜370 mm; 10＜W＜320 mm |
Accuracy |
+1.5 grams |
Detector Head Open Size | 360W x (110-210)H mm |
Detecting Valid Size | 300W x (80-180)H mm |
Max Detecting Height | 200mm |
Sensitivity | Fe≥ diameter 0.8mm, SUS304≥ diamter 1.5mm Actual depends on the product features and size |
Mini scale | 0.1 grams |
Weighing belt | 570L*320W mm |
Voltage | 220V/50 Hz or 60 Hz; Single phase |
Reject system | Reject arm, air blow, pneumatic pusher, drop dow |
Application
Dried fruits
Frozen food
Candy
Hardware
Features
◆ Checkweigher metal detector combination,combined design of check weigher and metal detector, small ground occupation ;
◇ Mother board control system and DSP technology to refrain product effect;
◆ 7" WIENVIEW touch screen and LCD display with simple and easy operation;
◇ Solid SUS304 structure ensure stable performance and precise working;
◆ Belt disassembling without tools, easier for clean and maintenance;
◇ Production records can be download by USB, convenient for checking production;
◆ Automatic adaptable for product effect, and product memory and fault record;
◇ Automatic rejecting system for selecting;
◆ Customized service available.
