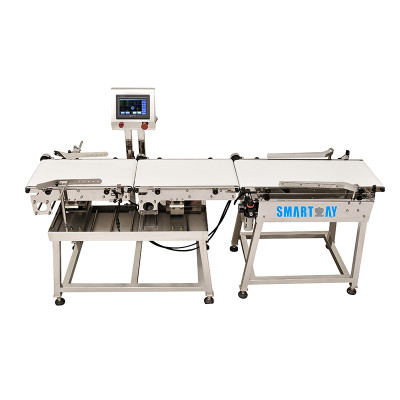

Automatic High Speed High Accuracy Checkweigher Machine Checkweigher Scale
Automatic High Speed High Accuracy Checkweigher Machine Checkweigher Scale
| Categories | Inspection Machine |
|---|---|
| Album | View larger image |
| Brand | SMART WEIGH |
| Model | SW-C320 |
| Construction | Stainless steel 304 |
| Brushed finish | Stainless steel 316 |
| FOB port | Zhongshan port, China |
| Terms of Payment | L/C, T/T |
| Download DOC |  |
| Update Time | 2021-04-20 |
Detail Information
Specification
Model |
SW-C320 |
Control system | Mother board |
Weighing range |
10-3200 grams |
Max. speed |
100 bags/min |
Product size | 10＜L＜370 mm; 10＜W＜320 mm |
Accuracy |
+1.5 grams |
Mini scale | 0.1 grams |
Weighing belt | 570L*320W mm |
Voltage | 220V/50 Hz or 60 Hz; Single phase |
Reject system | Reject arm, air blow, pneumatic pusher, drop dow |
Application
Bottle
Tray
Gusset Bag
Box
Features
◆ Automatic checkweigher equip with WIENVIEW 7" touch screen and Mother Board control system, simple operation and more stable performance;
◇ Adopting a well-known sensor brand HBM, high accuracy in weighing;
◆ Production records can be checked at anytime or downloaded to PC;
◇ All-digital signal processing and transmission;
◆ 304 stainless steel frame ensures the stable performance of machine and weighing accuracy;
◇ Many kinds of culling modes, such as swing arm, air blowing and cylinder push hand, ect. for selecting;
◆ Dismantling belt without tools, convenient for cleaning;
◇ Combined machine, space saving;
◆ If unqualified products pass to next equipment, machine will stop immediately to guarantee the quality.
Pictures for reference
320 Check Weigher 1
320 Check Weigher 2
320 Check Weigher 3
