Dry Food Almond Walnut Peanut Cashew Nuts packing machine Pistachio Packing Machine
Dry Food Almond Walnut Peanut Cashew Nuts packing machine Pistachio Packing Machine





Categories | Packing line |
---|---|
Album | View larger image |
Brand | SMART WEIGH |
Model | SW-PL1 |
Construction | Stainless steel 304 |
Brushed finish | Stainless steel 316 |
FOB port | Zhongshan port, China |
Terms of Payment | L/C, T/T |
Download DOC | ![]() |
Update Time | 2021-03-07 |
Detail Information
Smart Weigh is working on designing and proceducing dry food nuts packing machine solution. This solution is flexible for all kinds of dry food bagging machine, such as nuts packing machine, almond packing machine, walnut packing machine, cashew nut packing machine, hazelnut packing machine, chesnut packing machine, pecan packing machine, pistachio nuts packing machine and etc.
Machine list
1. Z bucket elevator

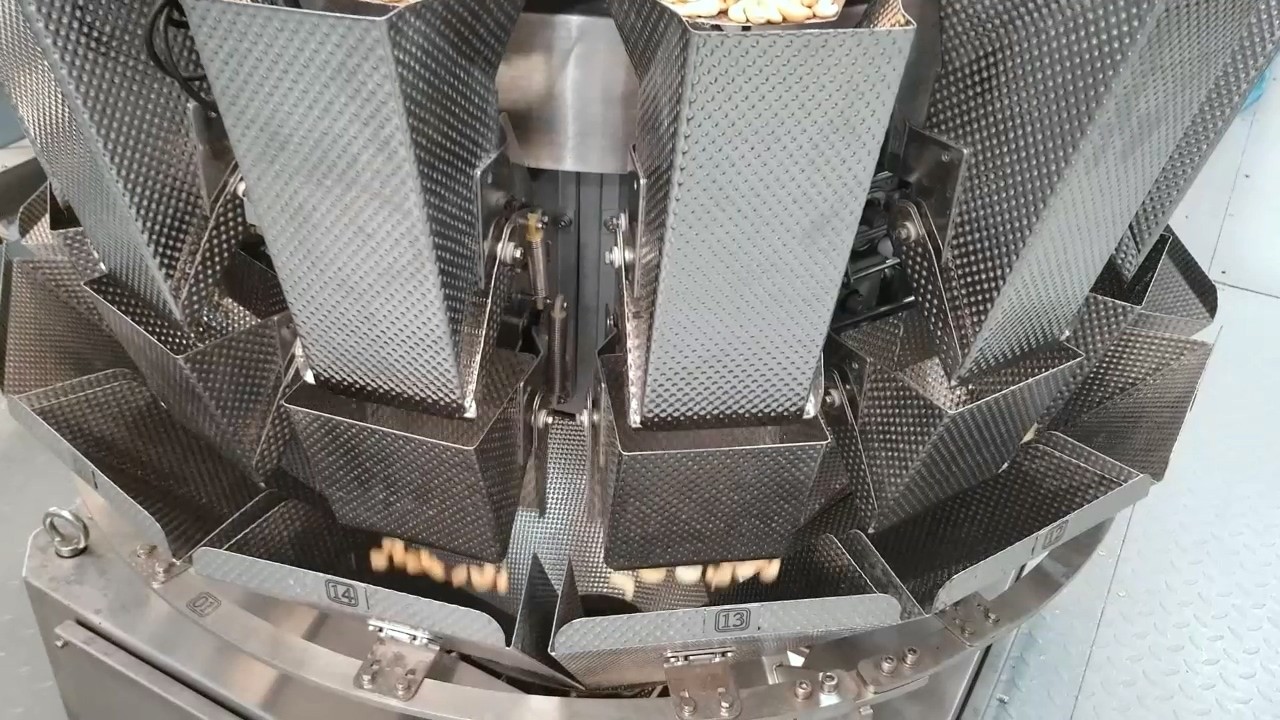

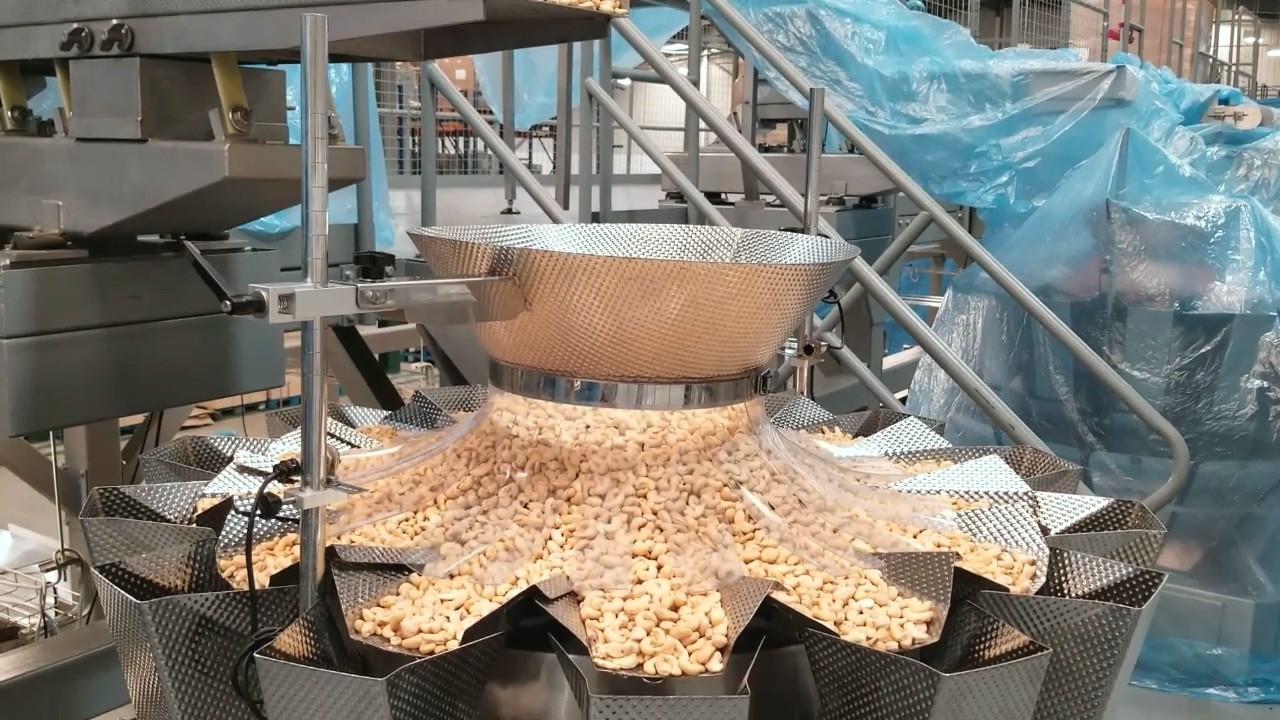

2. 14 head multihead weigher

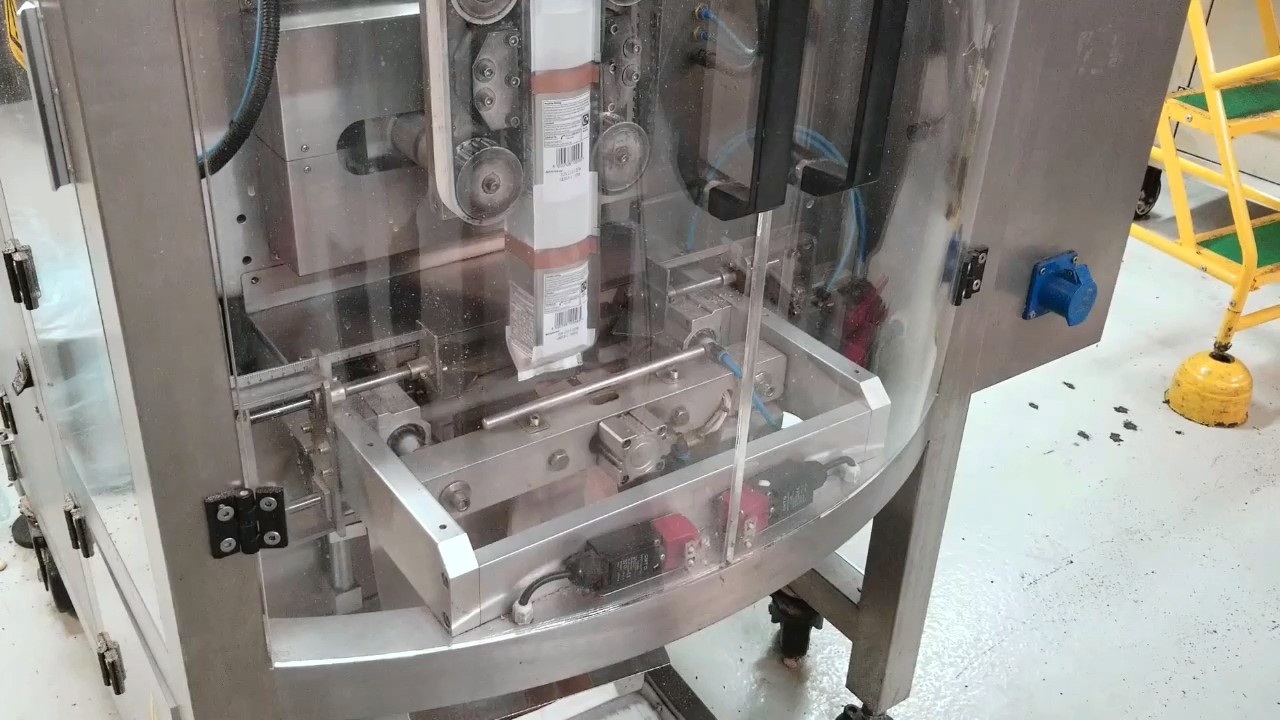

3. Vertical packing machine (quad-sealed bag packing machine in video)
4. Support platform
5. Output conveyor
6. Metal detector
Specification
Weighing range |
10-2000 grams |
Max speed |
65 bags/min |
Accuracy |
±1.5 grams |
Hopper Volume | 1.6L |
Bag style | Pillow bag, gusset bag, quad-sealed bag |
Bag size | Pillow bag: length 80-350 mm, width 60-300 mm; Quad-sealed bag: length 100-350mm, front width 70-180 mm, side width 40-100mm, sealed width 5-10 mm. |
Bag material | Laminated film or single layer film |
Drive system | Multihead weigher: modular drive Packing machine: PLC control |
Control panel | 7" touch screen |
Air consumption | 1.5m3/min |
Voltage | 220V/50HZ or 60HZ, single phase, 5.95KW |
Application

Almond

Cashew nut

Pistachio nuts

Nuts
Bag style




Features

Wide and flat type linear feeding pan
This design of linear feeding pan is suitable nuts projects, it ensure fast feeding, good for speed.

Independentn discharge chute
One unit hopper work with 1 discharge chute, separate discharge chute could reduce the nuts dropping time, speed up machine.

Good bag shaping
Accurate mechinical parts is good for bag shaping and speed.

Rotatable checkweigher touch screen
Rotatable touch screen is convenient for worker to monitor the bag weight.
